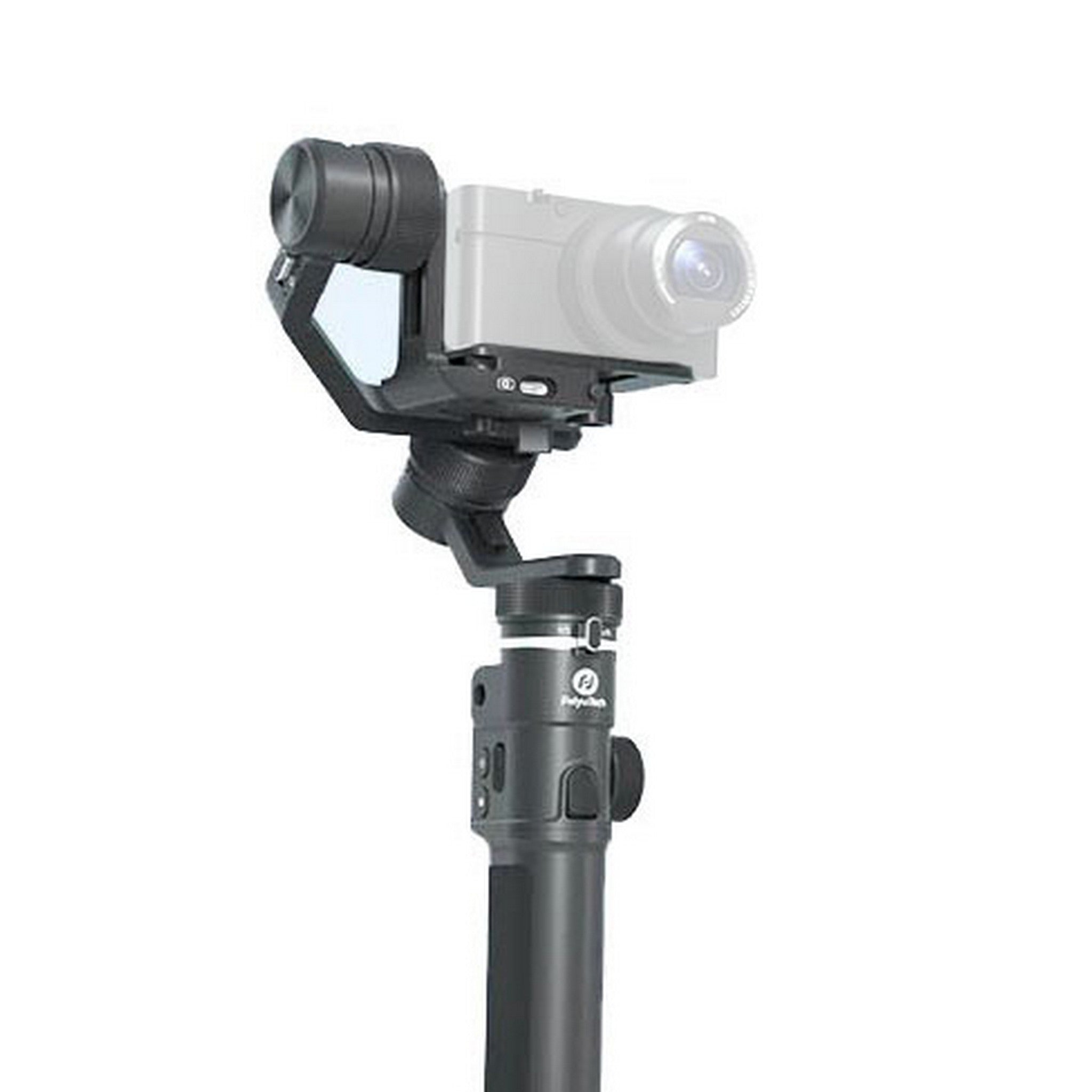

FeiyuTech FY G6MAX 3-Axis Handheld Gimbal

FeiyuTech FY G6MAX 3-Axis Handheld Gimbal

The new and improved high torque, magnetic, brushless motors boast a 50% increase in output, making the gimbal compatible with Mirrorless Cameras, Smartphones, Sports Cameras and Compact Cameras. The G6 Max can carry up to 1.2kg, which supports the combination of more cameras and lenses to provide more flexible use. Compared to the G6 Plus, the payload of the G6 Max has increased, but the volume has decreased by 20%. With its new compact design, the G6 Max can be used one-handed and can be packed away with ease.

Key Features

• The payload is up to 12KG , easily compatible with Camera Sony a7 series and short lens, and more Mirrorless Camera / Action Camera/ Smart phone
• Sliding designed quick release plate with anti-drop screws to release the camera quickly
• 3-axis motor lock, assist to balance and store the gimbal conveniently
• Ergonomic handle design make it easily to hold the gimbal by the curve for labor-saving, and conveniently to hold and operate by single hand
• Increase the size of OLED display screen Easier to check battery level/ work mode/camera status and other essential status on it
• USB-C port to control the camera photography / video recording/zoom quick smoothly with USB C cable connection
• The operation experience of Multi-function knob is highly improved, accurately to operate and elegantly to touch
• Just one tap to enter Inception mode to do auto-rotation movement, Any rotating angle is available at inception mode
• Just one tap to enter/exit Portrait mode for Tik Tok or Livestream, no need any other extra adapter or re-balance the gimbal again and again
• Set motion time-lapse and the route clearly by guide steps of display on gimbal Set up long exposure time lapse easily on touch display via cable control way
• Excellent splash-proof technology to carry your water proof Gopro/Smartphone to enjoy shooting fun in the rain
• The auto-adaption feature is precisely improved, which complete the motor strength adjustment in 2 seconds
• The customizing the function of trigger and function button help you personalize different working mode to fit innavidual special needs
• When equipped with optional wireless MIC kit, it can collect high quality sound to help you take VLOG/Tik Tok video more vividly
• With 1/4 inch thread hole each on the side and bottom of handle, it allows you to adapt more accessories
• 2200mAh battery capacity provides 9h working time for the whole day usage
• 360-degree at single-axis/two-axis/three-axis all follow without limitation, suitable for most shooting scenes

Technical Specifications

Compatible Camera/Smart- phone
SONY
Mirrorless camera such as 7sII/7SM2 (55mm/1.8), 6300/?6400/?6500(28-70mm), QX1 etc.; Pocket camera such as: RX100 IV/ RX100 V/RX100VII/RX100 M5A/ RX100M6/ RX100M7, RX1RII, WX500, HX90 etc.
Canon: Mirrorless camera such as: EOS R&RP, M50, M5, M6, G7X, 100D ,200D, etc.
Panasonic: G6, G7, GH5S, GX85, LX10 etc.
Other Mirrorless camera: BMPCC(first version), Fuji XT20, Leica D-lux etc.
Action Camera: Sony RX0, SJCAM J6legend, GoPro5/6/7, Sony FDR-X3000R, HDR-AS50R etc.
Smartphone: Attach smartphone adapter (standard accessory) before mounting.
The width of smartphone should be 54-88mm.
The size of compatible cameras for reference:
Camera height(include the height of viewfinder)?105mm
The distance from screw hole to the right edge of camera 87mm
Maximum length at lens direction: about 125mm
Payload
1.2kg/2.65lb
Weight 665g
(include built-in battery, Not include the accessories of camera,smartphone adatper etc.)
Battery type
2200mAh, 7.4V, Charge it via USB-C port on gimbal, Built-in battery can not be removed.
Battery time
9 hours (Successfully tested on 600g camera in show mode at well-balanced status) Battery time is depended on the actual payload.
Charging
Use USB C cable for charging via Type C port, Recommend using 5V/2A adapter for charging battery. Quick charging is forbidden.
The charging indicator will flash at display when charging, and shows full charge symbol when fully charged.
Charging time
Approx: 3 hours (5V/2A)
Water-Proof Grade
Splash proof
Rotatable Range
Tilting range
280(with limitation)
Rolling range
330(with limitation)
Panning range
360(without limitation)
Working with Smartphone&Feiyu ON APP
Connect to Feiyu ON APP (noted: G6max can not control original camera of smartphone)
Joystick
Control the smartphone movement to right/left/up/down directions
Function button(front side)
Switch between four working modes
Shutter button(front side)
photography/video recording( working under its current mode)
Camera mode button(right side)
Single tap to switch between photo/video recording mode, triple tap to switch front and rear camera.
Multi-function knob
Long press
Switch between the gimbal control/camera control
Single tap
Gimbal control: switch and control pan/roll/tilt axis rotating directions.
Camera control
Set parameter on APP (WT,MF,ISO,WB, EXP,EV etc.)
Rotate
Adjust the direction or parameter under its controlled.
Working with Camera
Connect camera Wifi via Feiyu ON APP at first time, after connection is done. The camera is under the control to take photo/video/zoom/follow focus(it will reconnect automatically in the next time)
Joystick
Control the camera movement to right/left/up/down directions
Shutter button
Half-way press to focusing, single press to control shooting/video recording( working under its current mode)
Camera mode button
Single tap to switch camera mode(suitable for some camera model, Please refer to controllable camera list for more details)
Multi-function knob
Long press
Switch gimbal control/camera control
Single tap
Gimbal control: switch and control pan/roll/tilt axis rotating directions.
Camera control
switch between focusing/zooming(Please refer to the controllable camera list for more details)
Rotate
Adjust the direction or parameter under its controlled.
Standard accessories
USB C cable – 1
Canon shutter release cable: Type C to Micro – 1
Canon shutter release cable: Type C to Type C – 1
Sony shutter cable: Type C to Multi – 1
Panasonic Shutter release: TYPE C to DC2.5 – 1
FUJIfilm/Canon shutter release cable:Type to TRS2.5 – 1
Gopro adapter*1
smartphone adapter*1
long screw*1
Tripod*1
EPP bag*1
