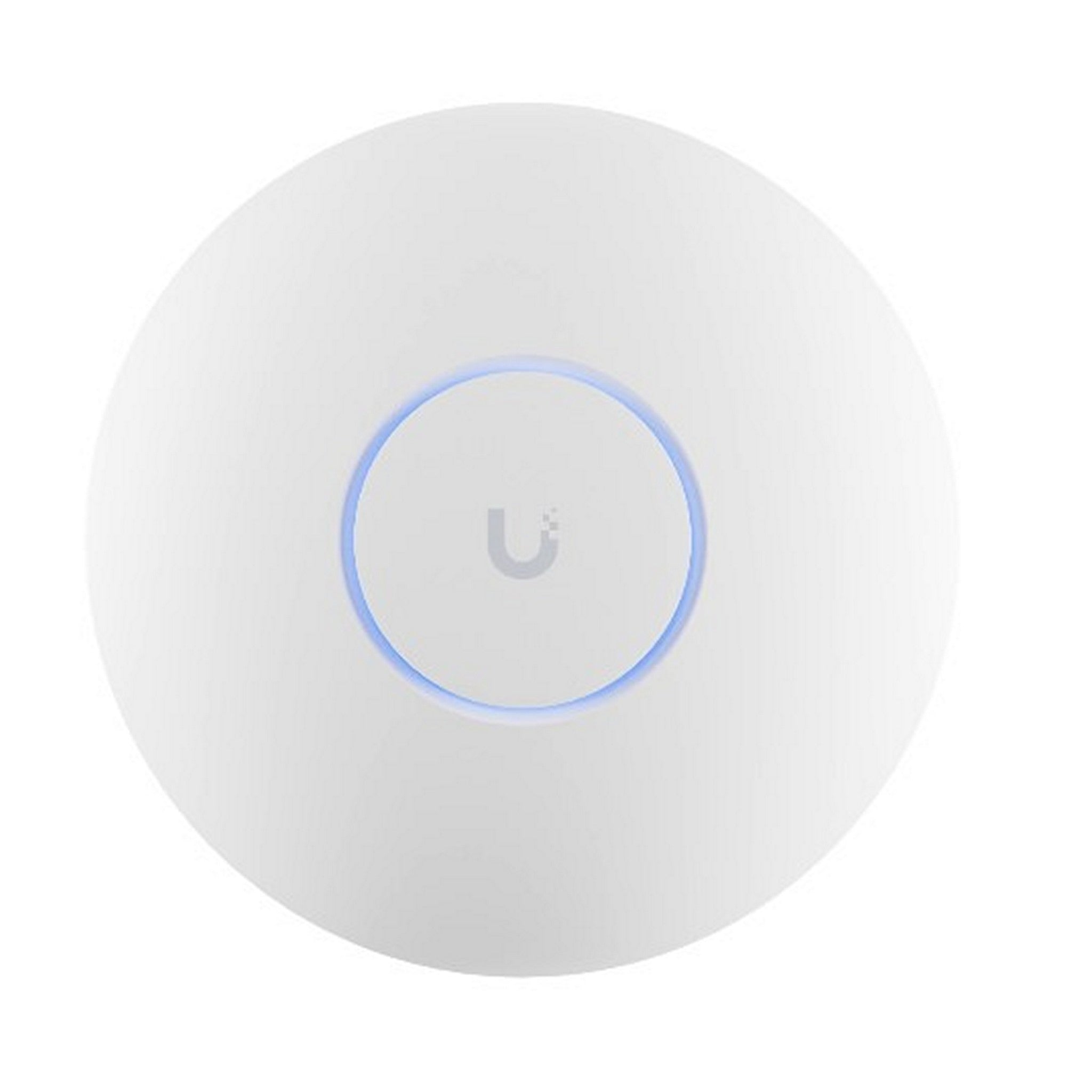

Ubiquiti U6 Enterprise WiFi 6E Access Point

Ubiquiti U6 Enterprise WiFi 6E Access Point

The Ubiquiti U6 Enterprise offers high-performance WiFi 6E for commercial environments, with multi-band support (2.4 GHz, 5 GHz, and 6 GHz) for a superior user experience. It supports high data rates, enhanced coverage, and has a sleek design. Equipped with PoE+, it provides seamless integration into enterprise-level networks.

Key Features:

• Supports WiFi 6E for faster speeds and enhanced capacity
• Optimized for 600+ concurrent clients
• PoE+ powered for easy deployment
• Max data rate: 4.8 Gbps on 5 GHz and 6 GHz
• Compact design with multiple mounting options

Technical Specifications:

Dimensions: Ø220 x 48 mm (Ø8.7 x 1.9″)
Weight: Without mount: 2.1 lbs (960 g); With mount: 2.4 lbs (1090 g)
Enclosure material: Polycarbonate, aluminum
Mount material: Stainless steel (SUS304)

Networking interface: (1) 1/2.5 GbE RJ45 port
Management interface: Ethernet, Bluetooth
Power method: PoE+
Power supply: UniFi PoE switch, 48V, 0.5A PoE adapter (Optional)
Supported voltage range: 44—57V DC
Max. power consumption: 22W
Max. TX power: 2.4 GHz: 22 dBm, 5 GHz: 26 dBm, 6 GHz: 26 dBm
MIMO: 2.4 GHz: 2 x 2 (DL/UL MU-MIMO), 5 GHz: 4 x 4 (DL/UL MU-MIMO), 6 GHz: 4 x 4 (DL/UL MU-MIMO)
Max. data rate: 2.4 GHz: 573.5 Mbps (BW40), 5 GHz: 4.8 Gbps (BW160), 6 GHz: 4.8 Gbps (BW160)
Antenna gain: 2.4 GHz: 3.2 dBi, 5 GHz: 5.3 dBi, 6 GHz: 6 dBi
LEDs: White/blue
Button: Reboot and factory-reset
Mounting: Wall, ceiling (Included)
Ambient operating temperature: -30 to 60° C (-22 to 140° F)
Ambient operating humidity: 5 to 95% noncondensing
Certifications: CE, FCC, IC

WiFi standards: 802.11a/b/g/n/ac/ax (WiFi 6/6E)
Wireless security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID: 8 per radio
VLAN: 802.1Q
Advanced QoS: Per-user rate limiting
Guest traffic isolation: Supported
Concurrent clients: 600+
Zero-wait DFS: Yes (Supported with upcoming firmware versions)
Supported Data Rates (Mbps): 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps, 802.11b: 1, 2, 5.5, 11 Mbps, 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps, 802.11n: 6.5 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40), 802.11ac: 6.5 Mbps to 3.4 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160), 802.11ax (WiFi 6/6E): 7.3 Mbps to 4.8 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160)
